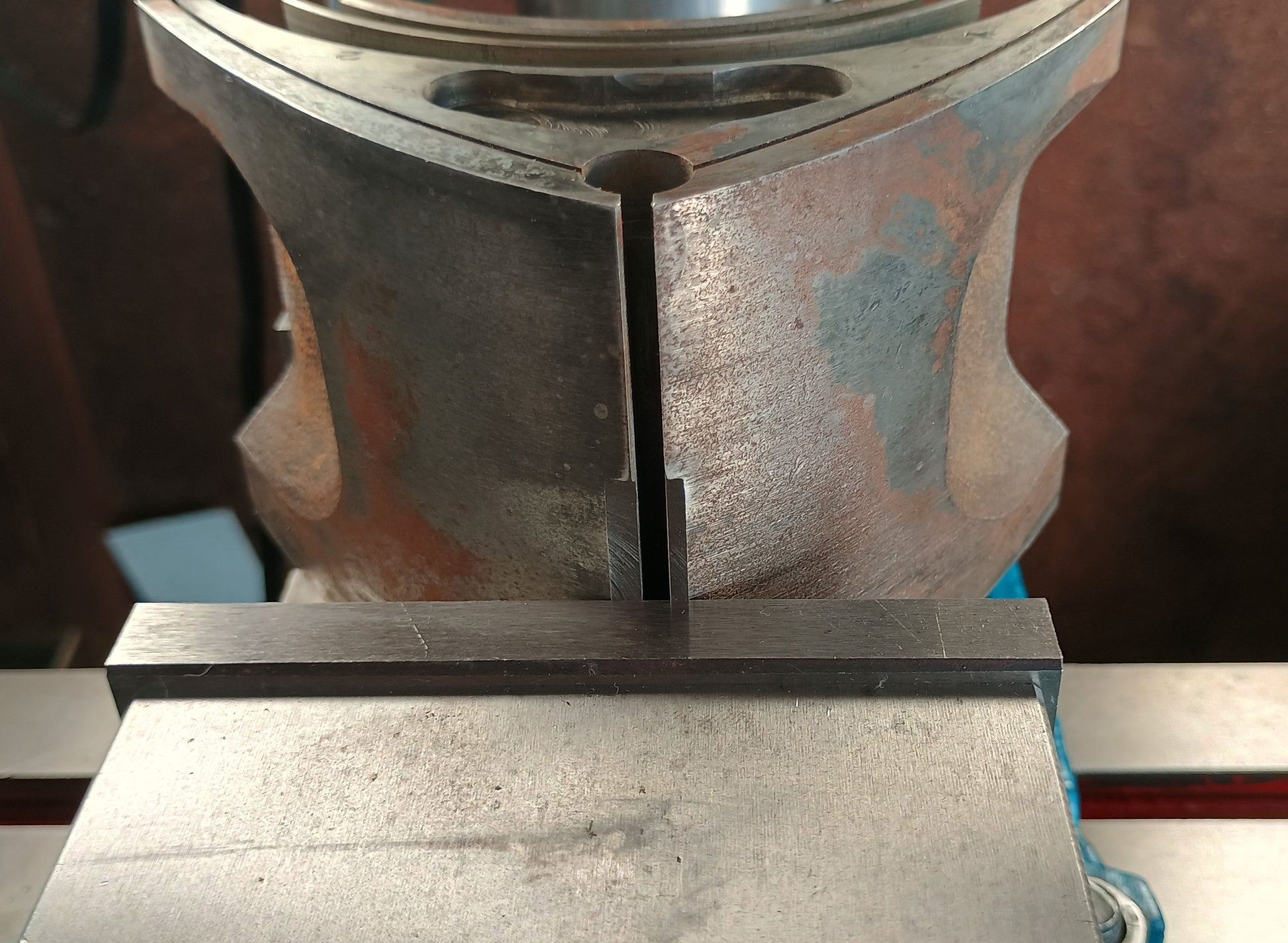

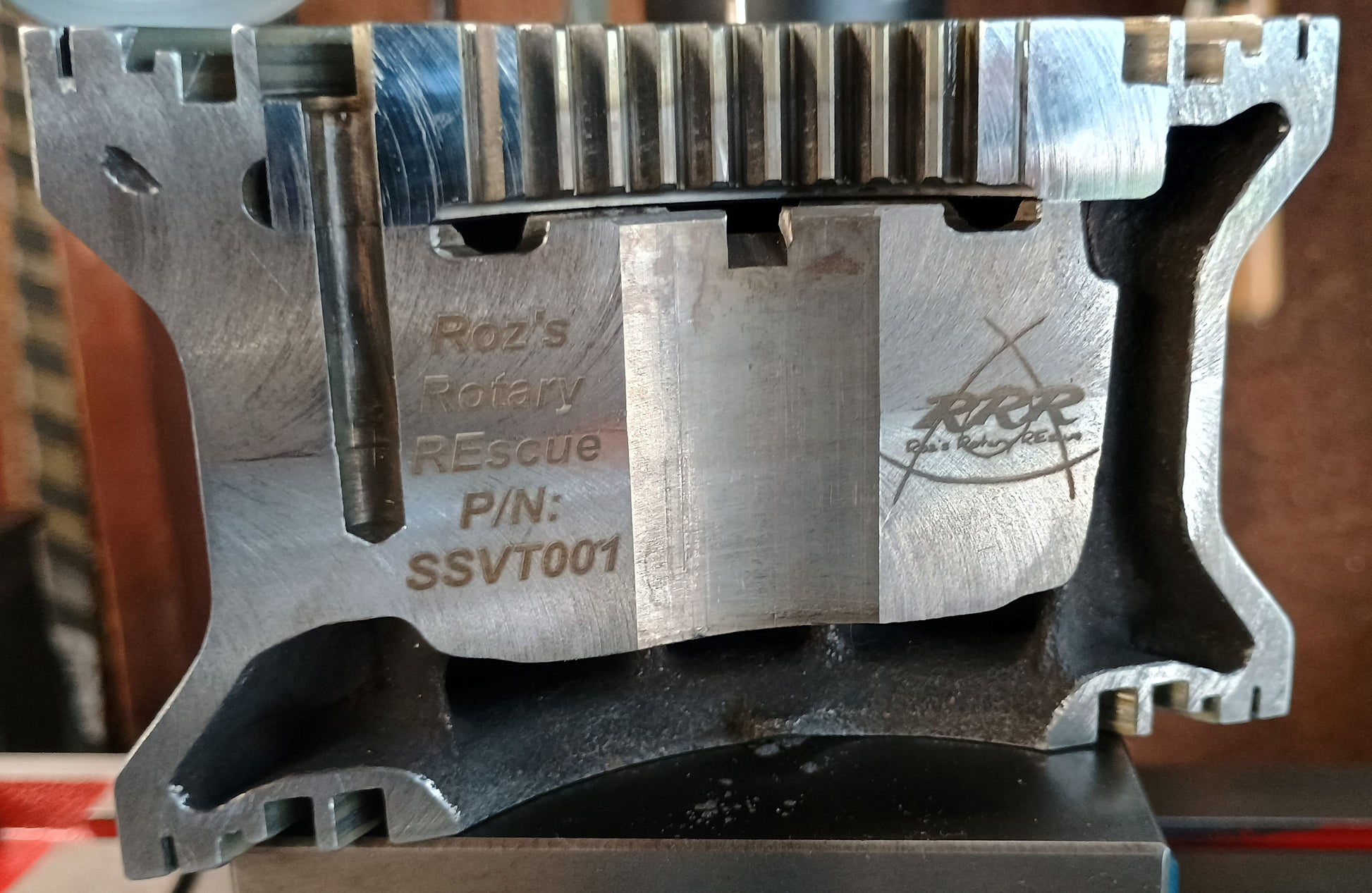

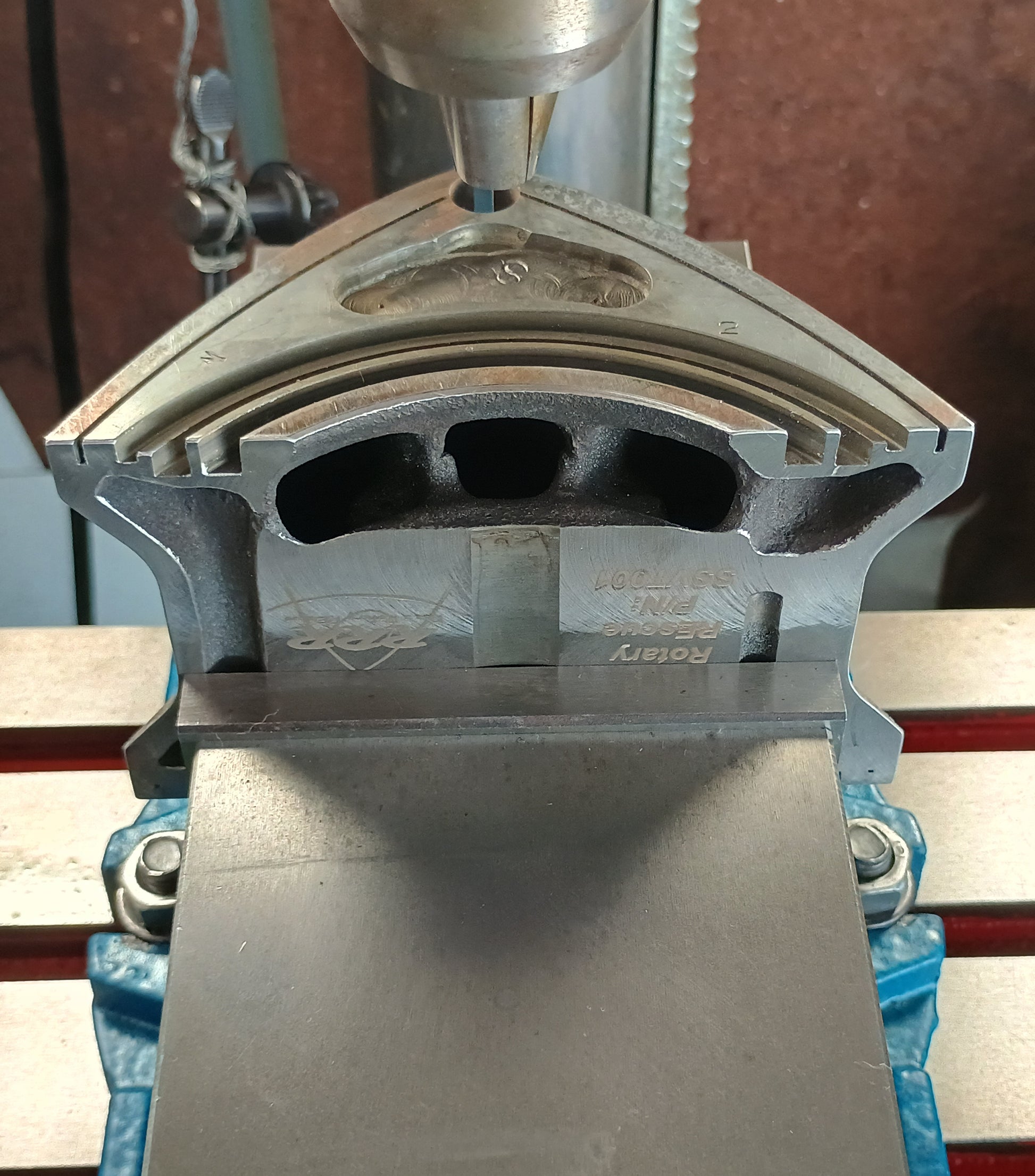

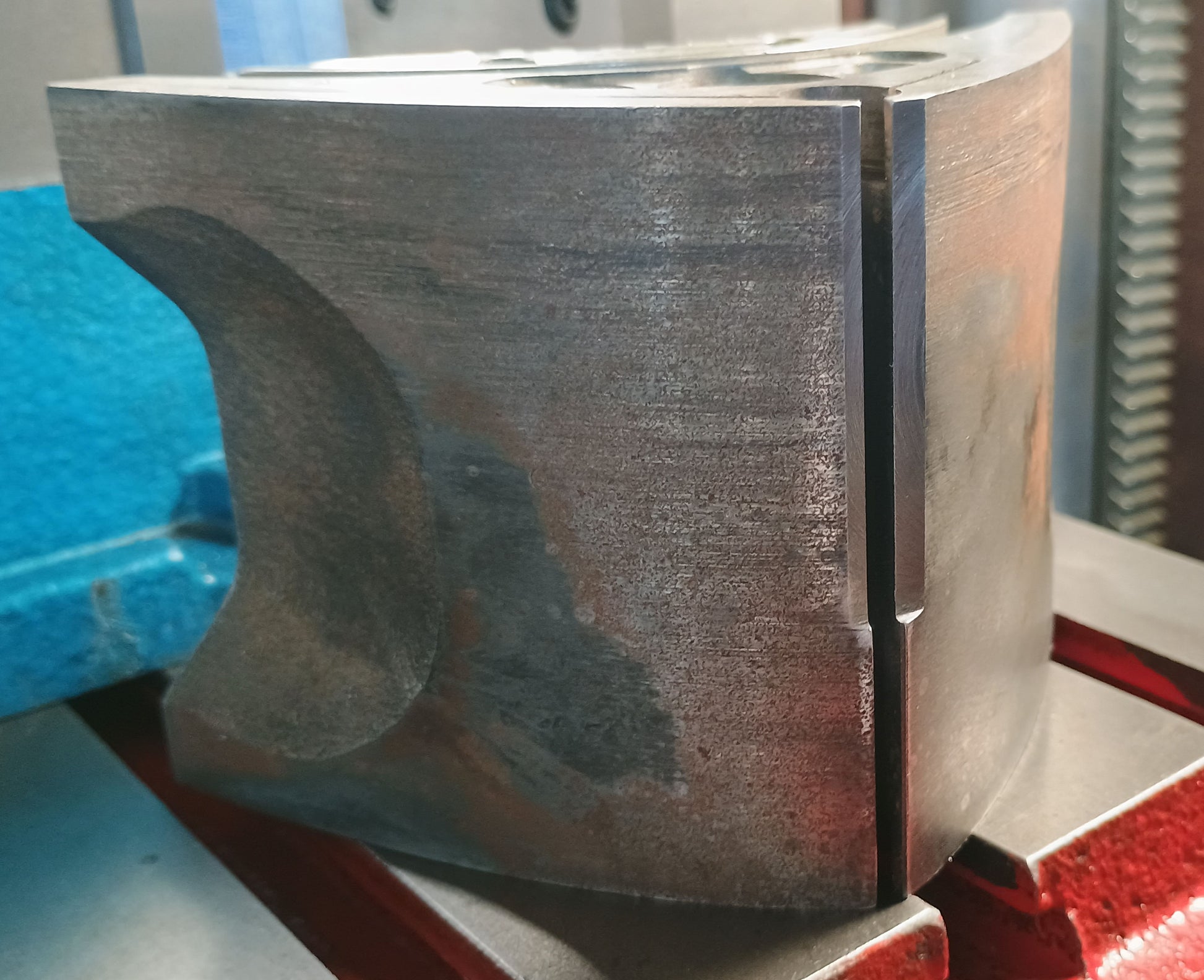

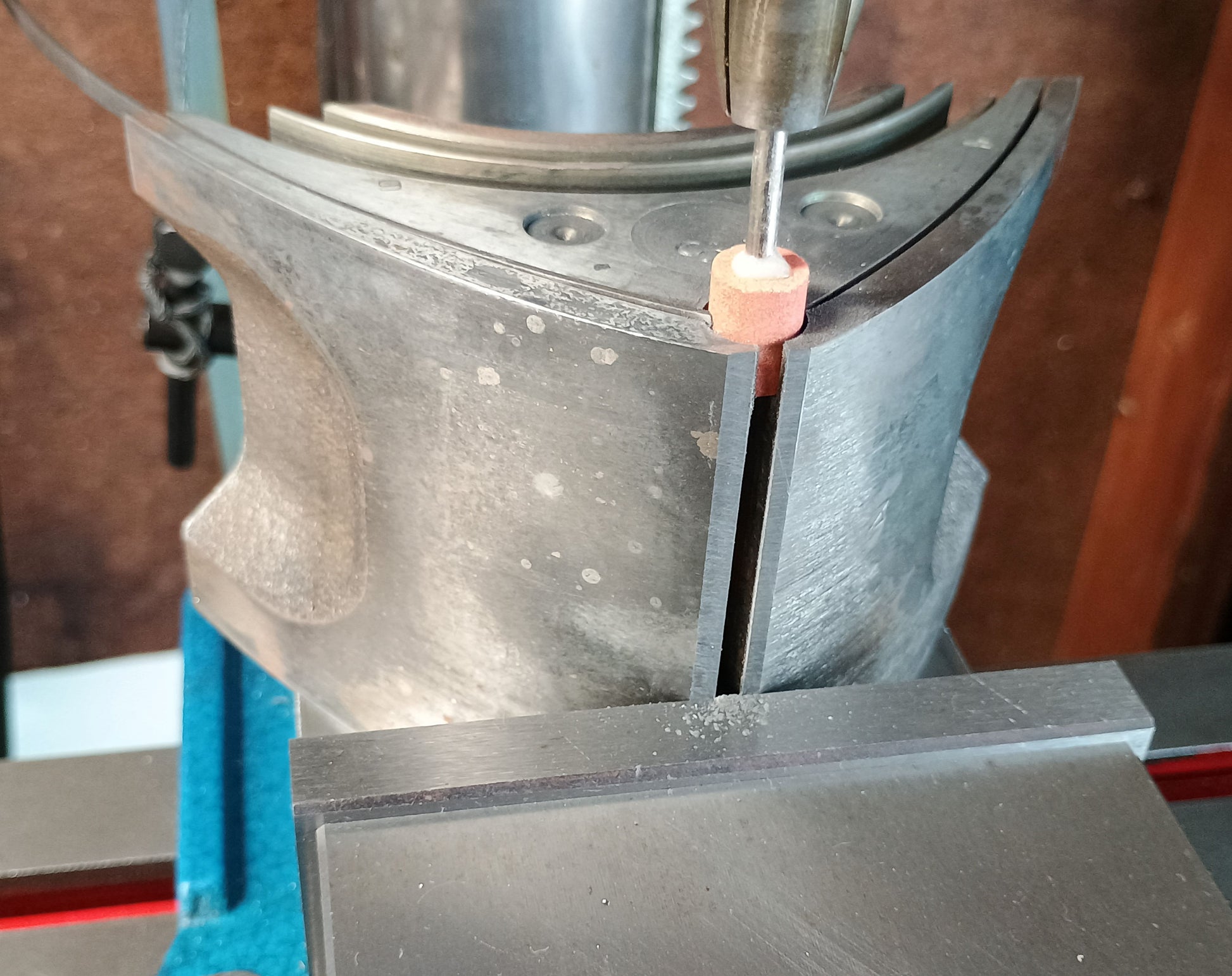

Make clearancing those side seals a breeze with this tool. This tool keeps the side seal in the correct orientation to the corner seal to get the proper chamfer on the uncut end of your side seals. Made from a cut down old engine rotor ensures that your grind will be accurate.

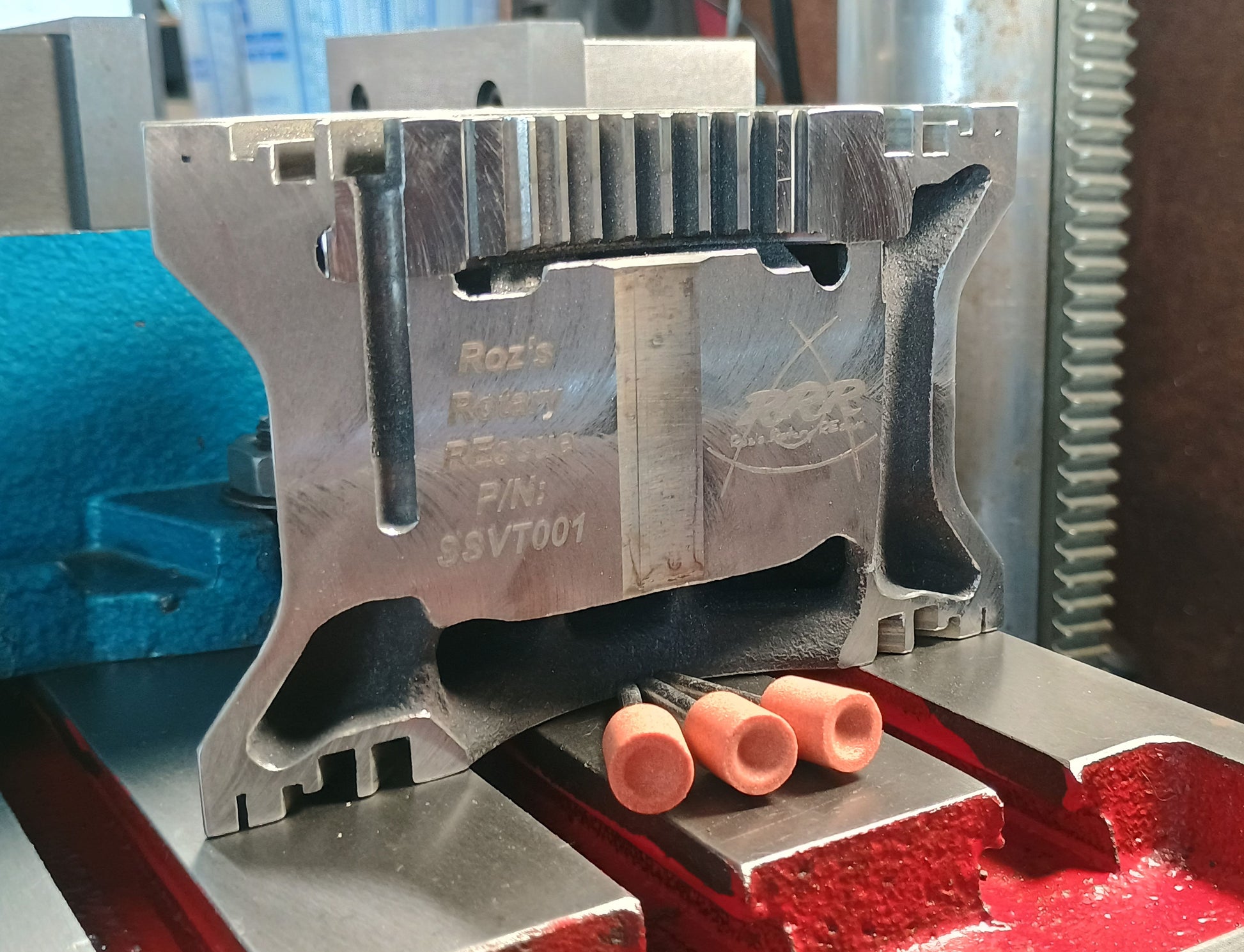

Includes:
One grinding fixture
3 10mm diameter medium grit grinding stones
Instruction sheet
Tool Requirements
Drill Press or Mill capable of 2000 RPM minimum
Machine Vice or Drill Press Vice with a minimum opening of 3 inches and maximum jaw depth of 1 7/8 inches
Old used side seal for dressing the grinding stone
